2023 Yamaha E01 | Complete Specs and Images

Share:

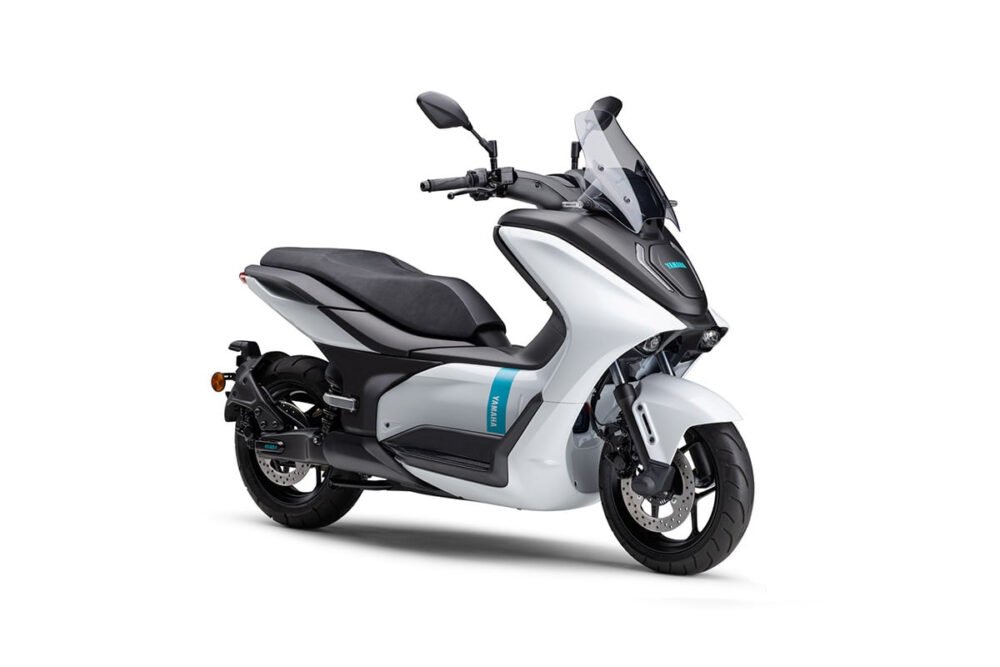

Yamaha launched the 2023 E01 electric scooter, a model with a size and power equivalent to the NMax 125. It was launched on a trial basis in Japan, Europe, Taiwan, Indonesia, Thailand and Malaysia, in a sharing fleet, and its public launch is expected in 2023 or 2024.

The E01 is a electric scooter equivalent to a 125cc model, which will still receive a final name. It has a modern design, with main headlights positioned as in the R1 supersport motorcycle.

Yamaha E01 has a central electric motor with a maximum power of 8.1 kW (11 hp) at 5,000 rpm, and 30 Nm (3.1 kgfm) of torque at 1,950 rpm. With it, this new scooter is capable of reaching up to 100 km/h.

In terms of battery, it is equipped with a Lithium-Ion unit (non-removable) of 87.6V and 56.3 Ah, which allows a range of up to 104 km (with an average speed of 60 km/h on flat ground).

There is still no price for the model as it is not being sold to the public.

See below the complete Technical Sheet, the specifications:

Electric Motor:
Power 8.1 kW (peak)
Torque 30 Nm
Gearbox No
General:
Battery Lithium-Ion, 87.6V, 56.3 Ah
Top Speed 100 km/h
Autonomy – 104 km (at 60 km/h)
Dimensions:
Length 1930mm
Width 740mm
Height 1230mm
Wheelbase 1380mm
Ground Clearance 140mm
Seat Height 755mm
Weight (Kerb) 158 kg
Chassis:
Front Brake Disc 230mm
Rear Brake Disc 230mm
Front Tire 110/70-13
Rear Tire 130/70-13
ABS Yes
Traction Control Yes
Others:
Fully Digital Panel Meter Yes
LCD or TFT Digital Panel TFT
Full-LED Lighting Yes
