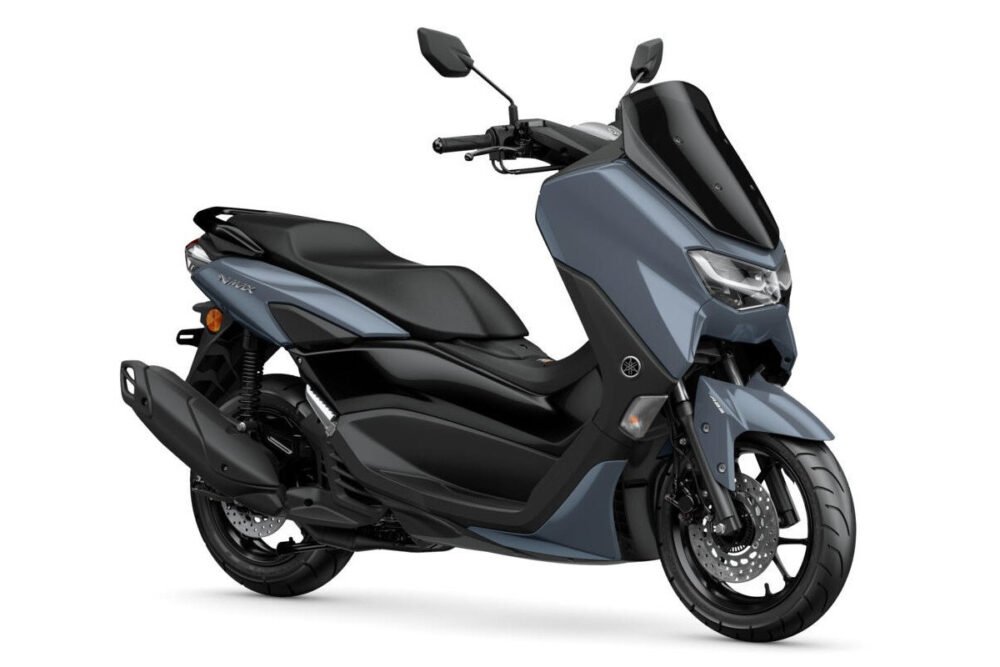

2022 Yamaha NMax 125 | Complete Specs and Images

Share:

Yamaha updated its Urban Mobility Scooter NMax 125 for the model year 2022 in Europe, bringing news colors and graphics.

The 2022 NMax 125 comes with sporty and dynamic new body which features sleek front and rear LED lights and an aerodynamic fairing that offers better protection from the wind and rain.

The engine is 125cc single cylinder with liquid cooling, capable of generating up to 12.2 HP of maximum power.

The available colors in Europe are: Milky White, Phantom Blue and Power Grey.

See below the complete Technical Sheet, the specifications:

Engine:
Cooling Liquid
Number of cylinders 1
Capacity 125 cm³
Power 12.2 HP (9.0 kW)
Torque 1.1 kgfm / 11.2 Nm
Gearbox CVT
General:
Fuel Tank capacity 7.1 liters
Top Speed 62 mph – 100 km/h
Avg Fuel Consumption – 45.4 km/L – 2.2L/100km
Dimensions:
Length 1935 mm
Width 740 mm
Height 1160 mm
Wheelbase 1340 mm
Ground Clearance 125 mm
Seat Height 765 mm
Weight (Kerb) 131 kg
Chassis:
Front Brake Disc 230 mm
Rear Brake Disc 230 mm
Front Tire 110/70-13
Rear Tire 130/70-13
ABS Yes
Traction Control Yes
Others:
Fully Digital Panel Meter Yes
LCD or TFT Digital Panel LCD
Full-LED Lighting No, only headlights and taillights
