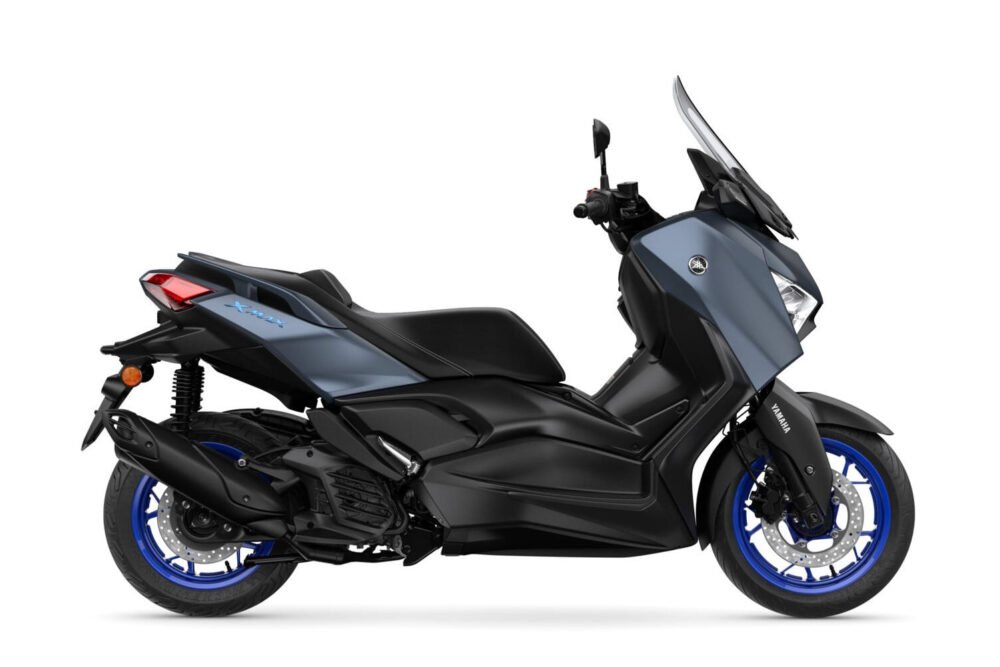

2023 Yamaha XMAX 125 | Complete Specs, Top Speed, Consumption, Images and More


Yamaha has launched in Europe the 2023 XMAX 125, its sporty 125cc scooter, which arrives with a new design and more embedded technology, to remain one of the best options in the segment.

Available in two versions, the ‘standard’ XMAX 125 and the top-of-the-line XMAX 125 Tech MAX, the new scooter features an updated design, with new front fairing and ‘X’-shaped headlight and taillight distribution, creating a modern, futuristic and aggressive look.

In addition, the new scooter now has turn signals at the same height as the handlebars, on the sides of the windshield, and a new seat that, according to the brand, has increased the level of comfort and practicality.

In terms of colors, the 2023 Yamaha XMAX 125 Tech MAX is available in Dark Petrol and Tech Black. The 2023 Yamaha XMAX 125 is available in Icon Blue and Sonic Grey.

The XMAX 125 is equipped with a 125 cm³ single-cylinder liquid-cooled engine, capable of generating up to 12.2 HP (9 kW) of maximum power.

See below the complete Technical Sheet, the specifications:

Cooling Liquid
Number of cylinders 1
Capacity 125 cm³
Power 12.2 HP (9 kW)
Torque 1.13 kgfm / 11.2 Nm
Gearbox CVT
Fuel Tank capacity 13.2 liters
Top Speed 68 mph – 110 km/h (unofficial)
Avg Fuel Consumption – not informed
Length 2180 mm
Width 795 mm
Height 1410 mm
Wheelbase 1570 mm
Ground Clearance 140 mm
Seat Height 800 mm
Kerb Weight 167 kg
Front Brake Disc 267 mm
Rear Brake Disc 245 mm
Front Tire 120/70-15
Rear Tire 140/70-14
Traction Control Yes
Fully Digital Panel Meter Yes
LCD or TFT Digital Panel TFT (Tech MAX), LCD (standard)
Full-LED Lighting Yes
